In electronics, the Power Law refers to the relationship between power, voltage, and current in an electrical circuit. The law helps us calculate the power consumed or delivered by a component in the circuit, such as a resistor, using the following formulas.

Basic Formula

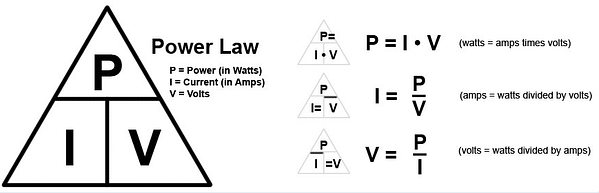

The basic formula for power (P) in an electrical circuit is:P=V×IP = V \times IP=V×I

Where:

• P is the power (measured in watts, W),
• V is the voltage across the component (measured in volts, V),
• I is the current flowing through the component (measured in amperes, A).

Derived Formulas Using Ohm’s Law

Since Ohm’s Law states that V=I×RV = I \times RV=I×R, we can substitute this into the power formula to derive two additional forms:

1. Power in terms of current and resistance:P=I2×RP = I^2 \times RP=I2×R
   • Here, power is proportional to the square of the current (I2I^2I2) and the resistance (RRR).
2. Power in terms of voltage and resistance:P=V2RP = \frac{V^2}{R}P=RV2​
   • Here, power is proportional to the square of the voltage (V2V^2V2) and inversely proportional to the resistance (RRR).

Understanding the Relationships

• Direct Relationship Between Power and Voltage/Current: If you increase the voltage or current in a circuit while keeping the other factors constant, the power consumed by the circuit will increase.
• Current and Resistance: If the resistance is constant, increasing the current leads to an increase in power, which is why the formula P=I2×RP = I^2 \times RP=I2×R is often used in scenarios like heating, where power dissipation (in the form of heat) depends on the current.
• Voltage and Resistance: Similarly, if resistance is constant, increasing the voltage across a component increases the power dissipated by it, as described by P=V2RP = \frac{V^2}{R}P=RV2​.

Practical Applications

• Power Consumption: Knowing the power consumed by different components helps in designing circuits to ensure they operate within safe limits. Exceeding the power rating of a component can cause it to overheat or get damaged.
• Power Supply Design: In power supply design, engineers use these formulas to calculate the necessary ratings of components like resistors and transistors to ensure efficient and safe operation.
• Heat Dissipation: Since power dissipation often leads to heat, understanding power relationships is crucial in managing thermal performance in electronic devices.

Examples

1. Example 1: If a resistor has a resistance of 10Ω \Omega10Ω and a current of 2A flows through it, the power dissipated by the resistor can be calculated as:P=I2×R=22×10=4×10=40 WP = I^2 \times R = 2^2 \times 10 = 4 \times 10 = 40 \, WP=I2×R=22×10=4×10=40W
2. Example 2: If you apply 12V across the same 10Ω \Omega10Ω resistor, the power dissipated would be:P=V2R=12210=14410=14.4 WP = \frac{V^2}{R} = \frac{12^2}{10} = \frac{144}{10} = 14.4 \, WP=RV2​=10122​=10144​=14.4W

In summary, the Power Law in electronics helps us understand how power is related to voltage, current, and resistance, enabling the design of safe and efficient electrical circuits.
