How to Use a Multimeter: A Beginner’s Guide

A multimeter is one of the most versatile tools for anyone working with electronics or electrical systems. Whether you’re troubleshooting circuits, testing batteries, or measuring voltage, a multimeter is your go-to device. In this guide, we’ll walk you through the basics of using a multimeter, step by step.

What is a Multimeter?

A multimeter, also known as a multi-tester, is an electronic measuring instrument that combines several functions into one device. It can measure:

• Voltage (AC and DC)
• Current (Amperes)
• Resistance (Ohms)
• Continuity (to check if a circuit is complete)

Modern multimeters are typically digital (DMMs), offering precise readings and user-friendly interfaces. Analog multimeters, while less common, are still preferred for certain applications.

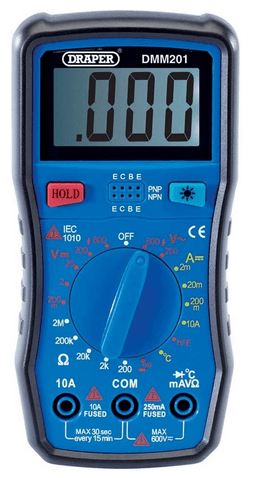

Getting Started: Parts of a Multimeter

Before diving into measurements, familiarize yourself with the key parts of a multimeter:

1. Display: Shows the measurement readings.
2. Selection Knob: Allows you to choose the type of measurement (voltage, current, resistance, etc.).
3. Ports: Where you connect the probes. Common ports include:
   • COM (black probe): Used for all measurements.
   • VΩmA (red probe): Used for voltage, resistance, and small currents.
   • 10A (red probe): Used for measuring higher currents.
4. Probes: The red and black wires used to connect the multimeter to the circuit or component.

Analogue or Digital?

Analog and digital multimeters serve the same purpose—measuring electrical properties like voltage, current, and resistance—but they differ significantly in design, functionality, and usage.

Analog Multimeter

• Display: Features a needle that moves across a scale. The position of the needle indicates the measurement.
• Accuracy: Generally less accurate, as the readings depend on the precision of the user’s eye in interpreting the needle’s position.
• Durability: More durable and simpler to repair due to fewer electronic components.
• Sensitivity: Better for observing subtle changes in readings, as the needle movement provides continuous feedback.
• Applications: Preferred for monitoring trends or fluctuations in real-time, such as observing varying current in circuits.

Digital Multimeter (DMM)

• Display: Features a digital screen that shows exact numerical readings, often with additional symbols.
• Accuracy: Highly accurate and easier to read, as it eliminates user error in interpreting scales.
• Features: Often includes advanced functions like auto-ranging, data logging, and additional measurements (e.g., capacitance, frequency).
• Ease of Use: User-friendly, especially for beginners, due to its straightforward interface and automated settings.
• Applications: Ideal for precise measurements and tasks that require consistent, reliable data.

Key Differences at a Glance

Feature	Analog Multimeter	Digital Multimeter
Display	Needle and scale	Digital screen
Accuracy	Depends on user skill	Highly accurate
Ease of Use	Requires practice	Beginner-friendly
Durability	More durable	Requires care
Cost	Generally lower	Slightly higher
Advanced Features	Minimal	Numerous (e.g., auto-ranging, logging)

For beginners, digital multimeters are often the go-to choice because of their precision and user-friendly design. Analog multimeters, however, remain a favorite for those working with dynamic signals or in environments where ruggedness matters. Your choice ultimately depends on your specific needs and comfort level.

Step-by-Step Guide to Using a Multimeter

1. Measuring Voltage

Voltage is the difference in electrical potential between two points. Here’s how to measure it:

• Set the selection knob to V (choose AC or DC depending on the source).
• Plug the black probe into the COM port and the red probe into the VΩmA port.
• Touch the probes to the two points you want to measure (e.g., battery terminals).
• Read the voltage on the display.

2. Measuring Current

Current is the flow of electric charge. To measure it:

• Set the knob to A (choose AC or DC).
• Plug the black probe into COM and the red probe into 10A (for high currents) or VΩmA (for small currents).
• Break the circuit and connect the probes in series with the load.
• Read the current on the display.

3. Measuring Resistance

Resistance measures how much a component resists the flow of current. To measure it:

• Set the knob to Ω.
• Plug the black probe into COM and the red probe into VΩmA.
• Touch the probes to both ends of the component (e.g., resistor).
• Read the resistance on the display.

4. Testing Continuity

Continuity checks if a circuit is complete. It’s useful for troubleshooting:

• Set the knob to the continuity symbol (a sound wave or diode symbol).
• Plug the probes into COM and VΩmA.
• Touch the probes to the two ends of the circuit.
• If the circuit is complete, the multimeter will beep.

Symbols on a Multimeter

Symbol	Function
V~ or ACV	Measures Alternating Current (AC) voltage.
V⎓ or DCV	Measures Direct Current (DC) voltage.
A~ or ACA	Measures Alternating Current (AC) amperage.
A⎓ or DCA	Measures Direct Current (DC) amperage.
Ω	Measures resistance in ohms.
Continuity (Sound/Diode Symbol)	Tests for continuous electrical paths. Provides audible feedback.
Hz	Measures frequency of an AC signal in hertz.
mA	Measures smaller current values in milliamps.
Capacitor Symbol	Tests capacitors and measures their capacitance (if supported).
Battery Icon	Tests battery voltage.
Diode Symbol	Tests diode functionality and voltage drop.

Tips for Safe and Effective Use

• Always start with the highest range: This prevents damage to the multimeter.
• Disconnect power before measuring resistance or continuity.
• Use insulated probes to avoid electric shocks.
• Store your multimeter properly: Set the knob to “OFF” when not in use.

Choosing the Right Multimeter

If you’re new to multimeters, start with a basic digital model. Brands like Fluke and Klein Tools offer reliable options. For advanced users, look for features like auto-ranging and additional measurement capabilities.

Conclusion

Using a multimeter might seem intimidating at first, but with practice, it becomes second nature. Whether you’re a DIY enthusiast or a professional, mastering this tool opens up a world of possibilities in electronics and electrical work.

For more detailed tutorials, check out this guide or step-by-step instructions. Let me know if you have any questions or need further assistance!
